EFGM
FITTINGS FOR SOCKET WELDING - UNIONS

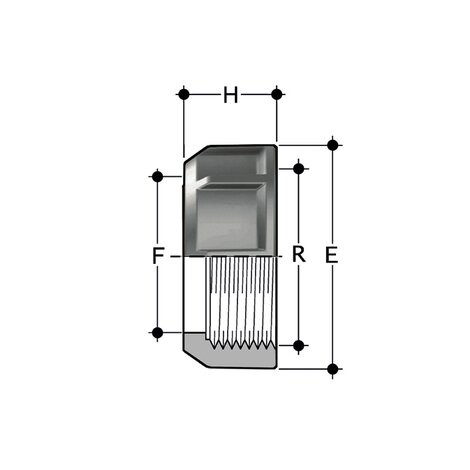

Union nut with BSP thread for union types BIGM, BIFGM, BIFOM, BIROM, BIFXM, BIRXM
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Objednací číslo | product.detail.attribute.R | product.detail.attribute.d BIGM | product.detail.attribute.PN | product.detail.attribute.E | product.detail.attribute.F | product.detail.attribute.H | product.detail.attribute.g |
|---|---|---|---|---|---|---|---|
| EFGM100 | 1" | 20 | 10 | 47 | 28 | 22 | 19 |
| EFGM112 | 1"1/2 | 32 | 10 | 65 | 42 | 27 | 40 |
| EFGM114 | 1"1/4 | 25 | 10 | 58 | 36 | 25 | 29 |
| EFGM200 | 2" | 40 | 10 | 78 | 53 | 30 | 57 |
| EFGM214 | 2"1/4 | 50 | 10 | 85 | 59 | 33 | 74 |
| EFGM234 | 2"3/4 | 63 | 10 | 103 | 74 | 38 | 119 |
